Samsung YP-U2 1GB

RightMark Audio Analyzer Test


Testing chain: YP-U2 (volume 26) -> M-Audio Transit USB (full volume)
Sampling mode: 24-bit, 44 kHz. Playback format: Wave, 16-bit, 44 kHz.

Load: Sennheiser HD 590 headphones (120 Ohms) connected in parallel




Summary

TestYP-U2 1GB
Load		YP-U2 1GB
No Load
Frequency response (from 40 Hz to 15 kHz), dB: +0.21, -0.10+0.13, -0.08
Noise level, dB (A): -90.8-90.9
Dynamic range, dB (A): 90.890.9
THD, %: 0.0110.0020
IMD + Noise, %: 0.0170.010
Stereo crosstalk, dB: -66.3-85.5

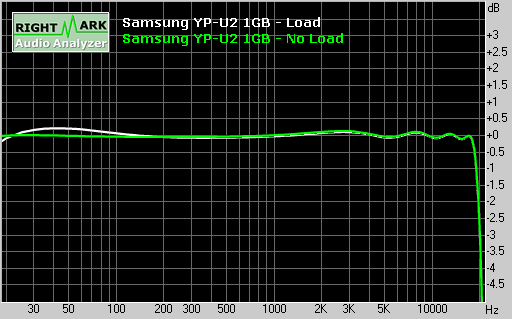

Frequency response

Spectrum graph

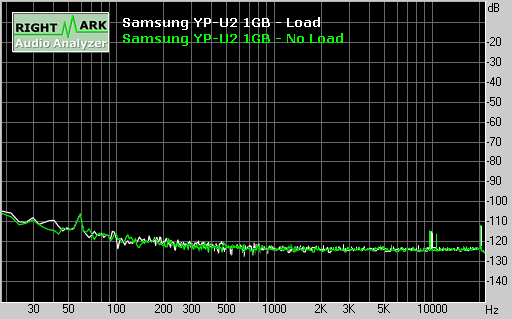

Noise level

Spectrum graph

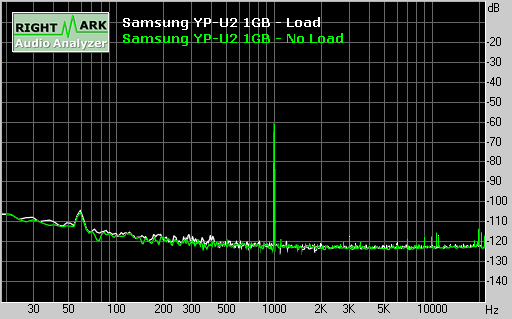

Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph

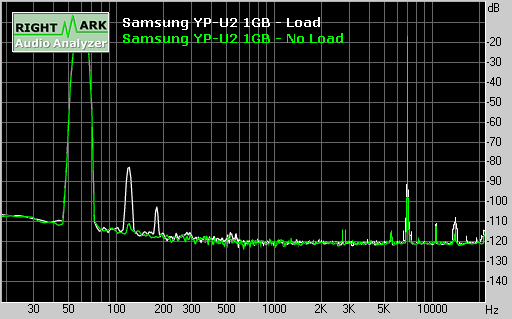

Intermodulation distortion

Spectrum graph

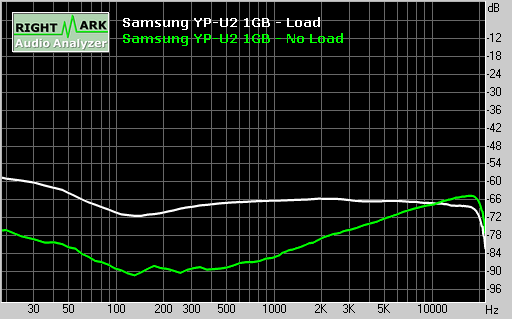

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
